    Using a Zebra CS4070 for scanning

    In Cloud POS, the Quick Scan feature allows you to use a barcode scanner to easily input barcodes into the system. This is useful for tasks like scanning items at the Point of Sale or during an Inventory Count/Stock Take.

    Citrus-Lime provides a wired Aures barcode scanner, but you can also purchase your own to use. This guide covers how to connect and configure the Zebra CS4070 model.

    Connecting the Zebra CS4070 to an iPad

    1) Power on the barcode scanner by pressing the scan key (+).

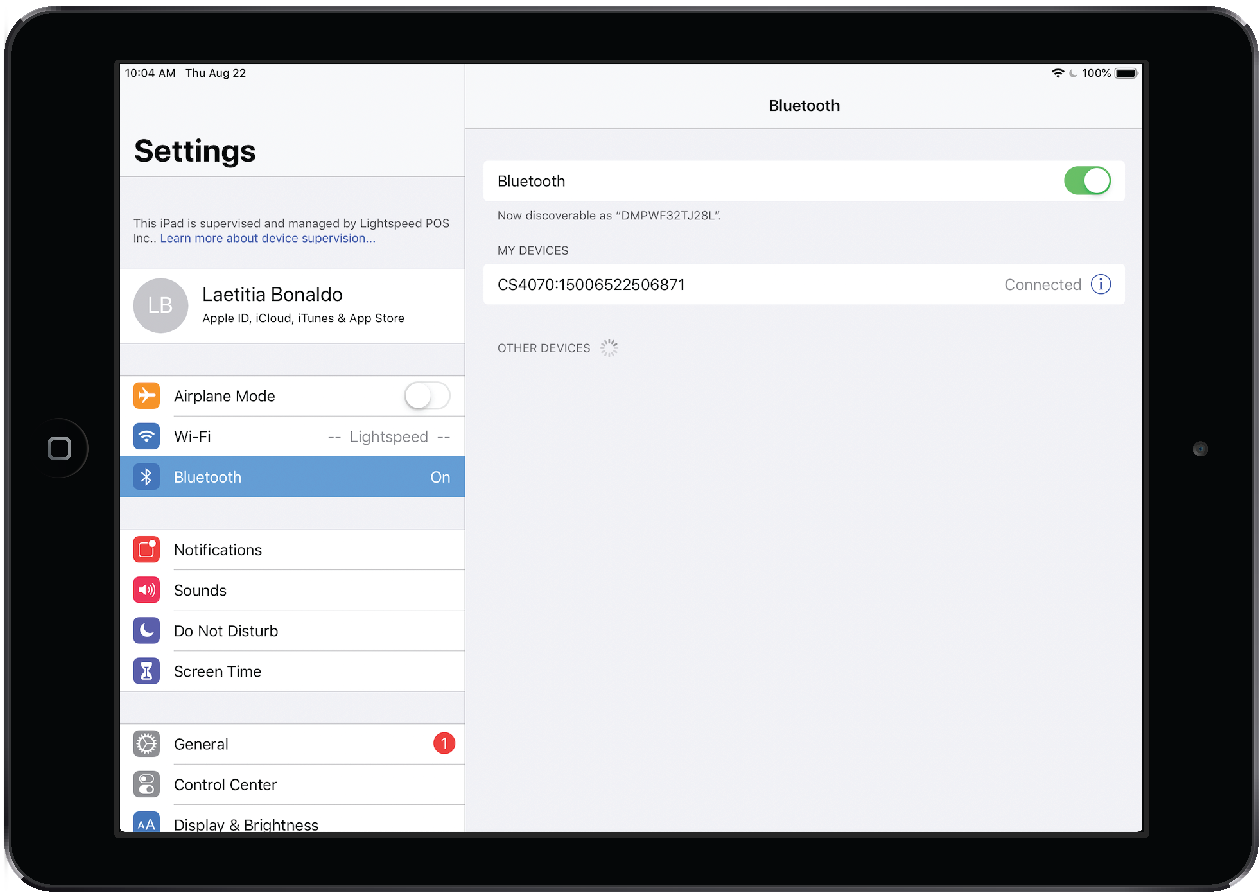

    2) On your iPad, go to Settings > Bluetooth.

    3) Enable Bluetooth.


    4) Under OTHER DEVICES, tap on your barcode scanner. Once paired, the scanner will display as “Connected” under MY DEVICES, and the blue Bluetooth LED will flash slowly.



    Troubleshooting

    The Zebra CS4070 offers numerous configuration options, which can be adjusted by scanning specific barcodes provided in the Zebra manual.

    You can access the full manual on the Zebra website.


    Common Issue: When testing the scanner during a Stock Take, the scanner read labels correctly but doesn't automatically hit 'Enter' after scanning. This requires manually pressing 'Enter' before scanning the next product.

    Solution: You can configure the Zebra scanner to automatically add an 'Enter' key after each scan, known as Carriage Return

    You can configure this by scanning the programming barcodes provided below in order:

    User-added image

    User-added image



    User-added image


    For a visual guide, check out this video:



    PLEASE NOTE

    As mentioned at the start of this article, Citrus-Lime do not provide the Zebra CS4070 scanner. If you have any issues with using the scanner or it is damaged or broken, you will need to contact the manufacturer, not the Citrus-Lime Support Team.
